Vertical DAF

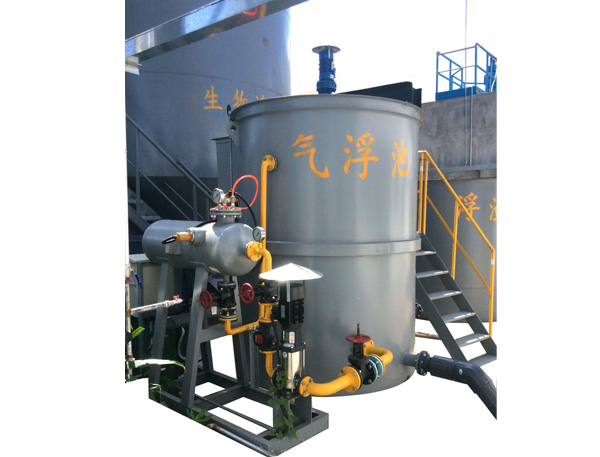

GSLF vertical DAF has the same working principle with other DAF. But for the structure, we have made some adjustment. GSLF type vertical DAF has cylindrical tank, using central water distribution and peripheral outflow.

1. Introduction

GSLF vertical DAF has the same working principle with other DAF. But for the structure, we have made some adjustment. GSLF type vertical DAF has cylindrical tank, using central water distribution and peripheral outflow. The separation zone is better for sludge floating and thickening. For the small volume, it has been widely applied in WWTP reconstruction project.

2. Features

Less land occupation.

High surface load.

Simple operation and easy maintenance.

3. Applied Range

Electroplating industry.

Tannery industry.

Dyeing and printing industry.

Slaughtering and breeding industry.

Other floating sewage treatment.

(solid-liquid separation and oil-liquid separation)

4. Composite

Tank, dissolved air system, pipe system, skimming system, electric control system, ladder and platform.
